| Ask Lasest Price | |
| Brand Name : | IKE Visual |
| Model Number : | Shine 10 |
| Certification : | CE,RoHS,FCC |
| Price : | Negotiate |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 500PCS/Month |
| Delivery Time : | 21days |

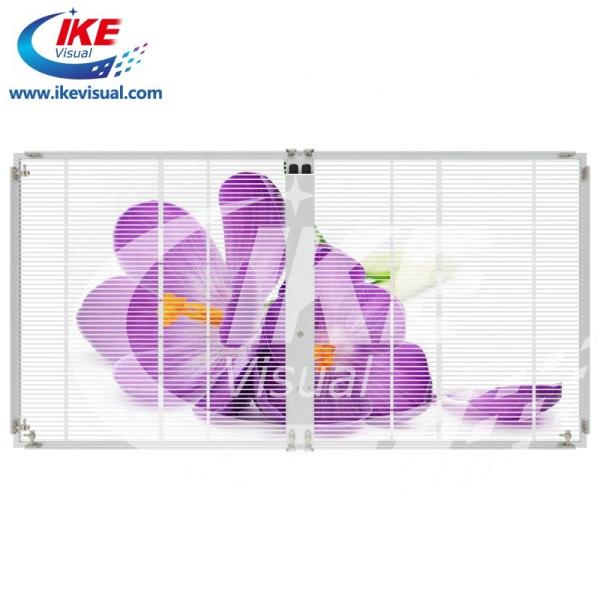

P10 Indoor Transparent Full Color LED Display Screen For Big LED Window Screen
Transparent LED Display Shine Series is a innovative LED window display, allows you to turn your glass window into a digital billboard, suitable for advertising.
It is almost invisible from the outside of the building, and also make seeing-through visual effect. It uses front-lighting PCB design, easy to SMD produce to become high reliability.
Modular panels and quick-lock design makes fast and convenient installation.
For outdoor rental, the lamp beads can be fully sealed, with IP65 protection for indoor and outdoor options.
| Specification | |||||
| Brightness | 1500 Nits/4500 Nits | 1500 Nits/6000 Nits | 1500 Nits/6000 Nits | 1500 Nits/6000 Nits | |
| Density | 32768 Pixels/㎡ | 18432 Pixels/㎡ | 12288 Pixels/㎡ | 9216 Pixels/㎡ | |
| Transparency | 50% | 65% | 65% | 75% | |
| Refresh Rate | 1,920Hz | 1,920Hz | 1,920Hz | 1,920Hz | |
| Scan Mode | 1/8 Scan | 1/4 Scan | 1/4 Scan | 1/3 Scan | |
| Panel Size | W1000mm*H500mm | W1000mm*H500mm | W1000mm*H500mm | W1000mm*H500mm | |
| Customized Available | |||||
| Weight | 6.5 kg/per panel | 6.5 kg/per panel | 6.5kg/per panel | 6.5kg/per panel | |
| Viewing Angle | 120. | 120. | 120. | 120. | |
| IP Degree | IP 40/IP65 | IP 40/IP65 | IP 40/IP65 | IP 40/IP65 | |
| Working Voltage | DC 5V | DC 5V | DC 5V | DC 5V | |
| Input Voltage | AC 100-240V | AC 100-240V | AC 100-240V | AC 100-240V | |
| Indoor Power Consumption | 800W /㎡ / 330W/㎡ | 600W /㎡ / 200W/㎡ | 600W /㎡ / 200W/㎡ | 600W /㎡ / 200W/㎡ | |
| Outdoor Power Consumption (Max./Avg.) | 600W /㎡ / 200W/㎡ | 800W /㎡ / 330W/㎡ | 800W /㎡ / 330W/㎡ | 800W /㎡ /330W/㎡ | |
| Working Temperature | -40~50℃ | -40~50℃ | -40~50℃ | -40~50℃ | |
Our Services
2. OEM&ODM, any your customized LED display, we can help you to design and put into product.
3. Distributorship are offered for your unique design and some of our current models.
4. Protection of your sales area, ideas of design and all your
private information
5. Top Quality+Reasonable Price+Responsible After
Service=Successful & Win-Win
|
|
