IP65 Transparent LED Window Display Outdoor P3 Full Color 4500 Nits

Ask Lasest Price
Brand Name :	IKE Visual
Model Number :	Shine O-3
Certification :	CE,RoHS,FCC
Price :	1350$/㎡
Payment Terms :	T/T, Western Union
Supply Ability :	500PCS/Month
Delivery Time :	21days

Add to Cart

Product Details
Company Profile

IP65 Transparent LED Window Display Outdoor P3 Full Color 4500 Nits

IP65 Transparent LED Display Outdoor P3 Full Color Window Display Screen

Overview

Quick Details

Pixel Pitch:: X: P3.90625mm ; Y: P7.8125m

Color:: Full color

Panel Size:: 500*1000mm

Applications:: Stage,trade show,retail shop,indoor outdoor

Place of Origin:: Guangdong, China

Model Number:: Shine O-3

Brand Name:: IKE Visual

Product name:: Transparent LED display

Brightness:: 4500nit

LED chip:: 3 in 1 smd

Life span:: 100000 Hrs

Scan mode:: 1/8S

Pixel density:: 32768 px/smq

Control system:: Novastar

Weight:: 17.9kg/sqm

Type:: led number display

High transparency
Stable and Fast Installation
Fixed and Rental Application
Energy Saving and Waterproof
Customized cabinet size and art-frame

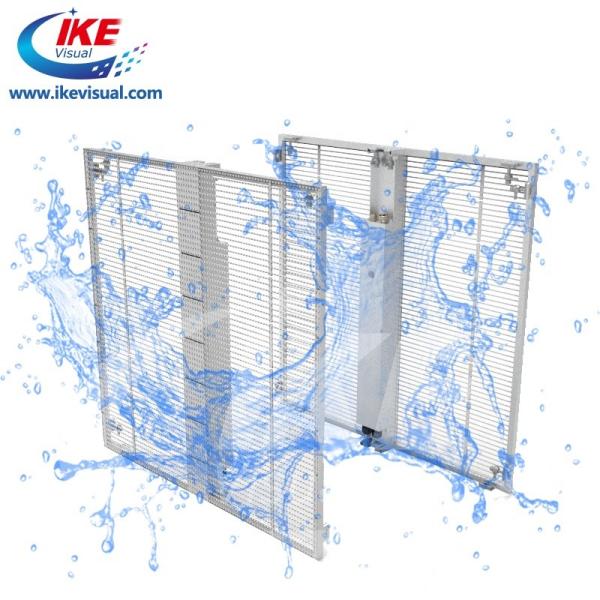

Transparent LED Display Shine Series is a innovative LED window display, allows you to turn your glass window into a digital billboard, suitable for advertising.

It is almost invisible from the outside of the building, and also make seeing-through visual effect. It uses front-lighting PCB design, easy to SMD produce to become high reliability.

Modular panels and quick-lock design makes fast and convenient installation.

For outdoor rental, the lamp beads can be fully sealed, with IP65 protection for indoor and outdoor options.

IP65 Transparent LED Window Display Outdoor P3 Full Color 4500 Nits

We have CE ROHS FCC.

Specification
Brightness1500 Nits/4500 Nits1500 Nits/6000 Nits1500 Nits/6000 Nits1500 Nits/6000 Nits
Density32768 Pixels/㎡18432 Pixels/㎡12288 Pixels/㎡9216 Pixels/㎡
Transparency50%65%65%75%
Refresh Rate1,920Hz1,920Hz1,920Hz1,920Hz
Scan Mode1/8 Scan1/4 Scan1/4 Scan1/3 Scan
Panel SizeW1000mm*H500mmW1000mm*H500mmW1000mm*H500mmW1000mm*H500mm
Customized Available
Weight6.5 kg/per panel6.5 kg/per panel6.5kg/per panel6.5kg/per panel
Viewing Angle120.120.120.120.
IP DegreeIP 40/IP65IP 40/IP65IP 40/IP65IP 40/IP65
Working VoltageDC 5VDC 5VDC 5VDC 5V
Input VoltageAC 100-240VAC 100-240VAC 100-240VAC 100-240V
Indoor Power Consumption800W /㎡
/ 330W/㎡600W /㎡
/ 200W/㎡600W /㎡
/ 200W/㎡600W /㎡
/ 200W/㎡
Outdoor Power Consumption (Max./Avg.)600W /㎡
/ 200W/㎡800W /㎡
/ 330W/㎡800W /㎡
/ 330W/㎡800W /㎡
/330W/㎡
Working Temperature
-40~50℃-40~50℃-40~50℃-40~50℃
Good after sold service

Product Tags:


*From:	Your email address is incorrect!
*To:	IKE Visual Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more Access Control & Accessories products from this supplier

Find Similar Products By Category:

Electronic Components & Supplies

Hot Searches:

IKE Visual Co., Ltd.

IP65 Transparent LED Window Display Outdoor P3 Full Color 4500 Nits

IP65 Transparent LED Window Display Outdoor P3 Full Color 4500 Nits

IP65 Transparent LED Window Display Outdoor P3 Full Color 4500 Nits

IP65 Transparent LED Window Display

IP65 4500 Nits Transparent LED Display Outdoor

4500 Nits Transparent LED Display Outdoor

IP65 Transparent LED Window Display Outdoor P3 Full Color 4500 Nits

IKE Visual Co.Ltd.,situated in Shishan Science and Technology Park, Foshan, is a high-tech enterprise featuring the R&D and manufacture of LED displays.

We have our own factory covering an area of 10 thousand ㎡,while boasting an experienced research team adept at self-developing such LED products as customized LED screens, flexible LED video walls and transparent LED displays.

Specification
Brightness	1500 Nits/4500 Nits	1500 Nits/6000 Nits	1500 Nits/6000 Nits	1500 Nits/6000 Nits
Density	32768 Pixels/㎡	18432 Pixels/㎡	12288 Pixels/㎡	9216 Pixels/㎡
Transparency	50%	65%	65%	75%
Refresh Rate	1,920Hz	1,920Hz	1,920Hz	1,920Hz
Scan Mode	1/8 Scan	1/4 Scan	1/4 Scan	1/3 Scan
Panel Size	W1000mm*H500mm	W1000mm*H500mm	W1000mm*H500mm	W1000mm*H500mm
Panel Size	Customized Available
Weight	6.5 kg/per panel	6.5 kg/per panel	6.5kg/per panel	6.5kg/per panel
Viewing Angle	120.	120.	120.	120.
IP Degree	IP 40/IP65	IP 40/IP65	IP 40/IP65	IP 40/IP65
Working Voltage	DC 5V	DC 5V	DC 5V	DC 5V
Input Voltage	AC 100-240V	AC 100-240V	AC 100-240V	AC 100-240V
Indoor Power Consumption	800W /㎡ / 330W/㎡	600W /㎡ / 200W/㎡	600W /㎡ / 200W/㎡	600W /㎡ / 200W/㎡
Outdoor Power Consumption (Max./Avg.)	600W /㎡ / 200W/㎡	800W /㎡ / 330W/㎡	800W /㎡ / 330W/㎡	800W /㎡ /330W/㎡
Working Temperature	-40~50℃	-40~50℃	-40~50℃	-40~50℃
