Curved Soft Flexible Display Module Waterproof P8 Outdoor LED Screen

Ask Lasest Price
Brand Name :	IKE Visual
Model Number :	Wind
Certification :	CE,RoHS,FCC
Price :	Negotiate
Payment Terms :	T/T, Western Union
Supply Ability :	500PCS/Month
Delivery Time :	12 days

Add to Cart

Product Details
Company Profile

Curved Soft Flexible Display Module Waterproof P8 Outdoor LED Screen

P8 Outdoor Soft Module LED Screen Display Curved Flexible LED Display Screen

Overview

Wind O

Quick Details

Application:: Outdoor

Color:: Full color

Waterproof: IP65

Pixel Pitch:: P3.125mm

LED Type:: 1921SMD

LED Chio: 3 in1 SMD

Place of Origin:: Guangdong, China

Model Number:: Wind O

Power Consumption (Max./Avg.): 800W /㎡ / 267 W/㎡

Panel size:: W800mm*H400mm

Use:: Advertising publish, retail store, shopping mall,stage

Product name:: Flexible LED display

Brightness:: 1200 nits

Media Available:: Datasheet, Photo, EDA/CAD Models

Max. Curve:: Min.Diameter 77cm Concave Or Convex

Scan mode:: 1/16S

Pixel density:: Accordingly

Control system:: Novastar

Weight:: 17.9kg/sqm

Refresh Rate:: 1920Hz

Customized:: Accept

Product Description

Stable quality
Fast and easy installation
Waterproof available
Energy Saving
Customized Shape
Magnet inside

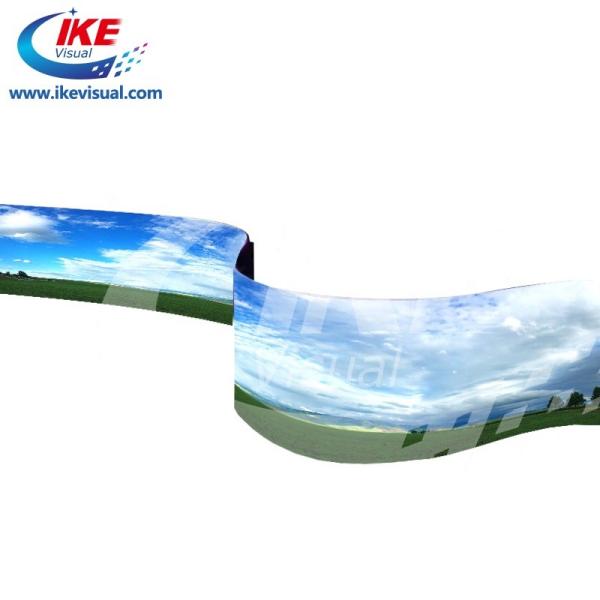

Wind Series flexible LED display offers outstanding performance
with its real flexibility.

The unique design contributes to the horizontal and vertical
deformed bending installation, making it possible to achieve
“S”shaped, round, concave, convex and curved screen.

The special soft PCB board design allows Wind series being
ever-changing,no matter if you would want concave shape in a
concert now,and cylinder LED display in a supermall tomorrow,even
would provide a touring show for a stage 2 days later,it will be
easily done by Wind Series .
We have CE ROHS FCC.

Model No	Wind-3	Wind-4/Wind O-4	Wind-6/Wind O-6	Wind-9/Wind O-9	Wind-12/Wind O-12
Pixel Pitch	P3.125mm	P4.6875 mm	P6.25 mm	P9.375 mm	P12.5mm
Density	102400 Pixels/㎡	45512 Pixels/㎡	25600 Pixels/㎡	11378 Pixels/㎡	6400 Pixels/㎡
Brightness	1200 Nits	1200 Nits/5000 Nits	1200 Nits/5000 Nits	1200 Nits/5000 Nits	1200 Nits/5000 Nits
IP Degree	IP43	IP43/IP65	IP43/IP65	IP43/IP65	IP43/IP65
Panel Size	800mm*400mm	1200mm*600mm	1200mm*600mm	1200mm*600mm	1600mm*800mm
Panel Size	Customized Available
Module Resolution	256 x 128	256 x 128	192 x 96	192 x 96	192 x 96
Weight	17.5kg/㎡	17.9kg/㎡	17.5kg/㎡	17.5kg/㎡	17.2kg/㎡
Scan Mode	1/16 Scan	1/16 Scan	1/8 Scan	1/8 Scan│1/4 Scan	1/8 Scan│1/2 Scan
Max. Power Consumption	800 W /㎡	Indoor: 700 W /㎡	Indoor: 700 W /㎡	Indoor: 300 W /㎡	Indoor: 200 W /㎡
Max. Power Consumption	800 W /㎡	Outdoor:830 W/㎡	Outdoor:830 W/㎡	Outdoor:600 W/㎡	Outdoor:600 W/㎡
Avg. Power Consumption	267 W/㎡	Indoor: 230W /㎡	Indoor: 230 W /㎡	Indoor: 100 W /㎡	Indoor: 80 W /㎡
Avg. Power Consumption	267 W/㎡	Outdoor:280W/㎡	Outdoor:280 W/㎡	Outdoor:200 W/㎡	Outdoor:200 W/㎡
Viewing Angle	120 degree
Working Voltage	DC 5V
Input Voltage	AC 100-240V
Thickness	7.0cm (With Electronic Box) 1.3cm(Without Electronic Box)

Good after sold service

Curved Soft Flexible Display Module Waterproof P8 Outdoor LED Screen

What are the differences between the outdoor ,indoor, semi-outdoor LED display ?
1:Brightness: the brightness of indoor LED displays are much less than the outdoor and the semi-outdoor LED display. The brightness Of outdoor LED display and the semi-outdoor LED display are closed.
2:waterproof level: indoor and semi-outdoor LED display are not waterproof.
What a led display can show exactly?
1. Video play: It can play various signals, such as TV, DVD,VCD. It can also switch to different videos at any time, and zoom or cut video operation.
2. Word processing: It can display various character with different fronts, types and character information, it also may roll up the pages, shift, rotate, snow flow, screen rolling, glint and more than other 10 types display functions.
3. Picture display: It can play various graphics, pictures, such as BMP ,JPG ,GIF ,TIFF ,TXT ,DOC,PPT format etc.
4. Cartoon demonstration: It can play two or three cartoons, and revivify the vivid effect of the picture
5. Random layout: The powerful software can play video images, characters, graphics independently, tile up the characters information and cartoons etc
