Waterproof P3 Outdoor LED Display Screen Fixed 1920hz SMD 2020 For Mall

Ask Lasest Price
Brand Name :	IKE Visual
Model Number :	Jade O-3
Certification :	CE,RoHS,FCC
Price :	900$/㎡
Payment Terms :	T/T, Western Union
Supply Ability :	500PCS/Month
Delivery Time :	21days

Add to Cart

Product Details
Company Profile

Waterproof P3 Outdoor LED Display Screen Fixed 1920hz SMD 2020 For Mall

P3 Outdoor Waterproof Fixed LED Display For Mall Facade Billboard and Big Tv Screen

Overview

Jade O-3

Quick Details

Application:: Outdoor,semi outdoor

Color:: Full color

Waterproof: IP65

Pixel Pitch:: P3.91

LED Type:: 2020SMD

LED Chio: 3 in1 SMD

Place of Origin:: Guangdong, China

Model Number:: Jade O-3

Power Consumption (Max./Avg.): 800W /㎡ / 267W/㎡

Panel size:: W500mm*H500mm / W500mm*H1000mm

Use:: LED Video Wall,Billboard and stage screen

Product name:: Jade LED display

Brightness:: 5000 nits

Media Available:: Datasheet, Photo, EDA/CAD Models

Module Resolution:: 128 x 128 / 128 x 256

Scan mode:: 1/16S

Pixel density:: 65536 px/smq

Control system:: Novastar

Weight:: 6.5kg/panel

Refresh Rate:: 1920Hz

Customized:: Accept

Product Description

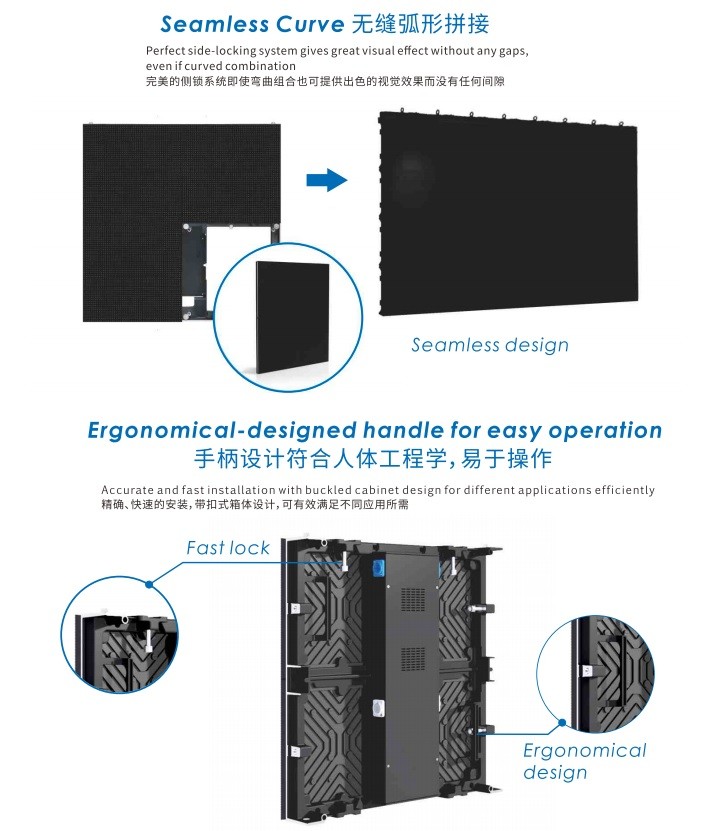

1. Made with aluminum alloy wiht very light weight

2. Super thin cabinet size of 768× 768mm

3. Rental design, easy to install and dismantle without any tools

4. Seamless splicing,good heat dissipation,Low noise

5. High brightness, good display performance and cost performance

6. Wide view angle,good heat dissipation

7. 2 years quality warranty

8. Packed with flightcase or wooden case as required

9. Widely used in public advertising, theatre, live show, live
meeting, banquet, stage background etc.

Jade Series is a die-casting Aluminum structure cabinet LED
display.
It features an all-in-one and simple-to-deploy design to improve
installation efficiency.
Optimized system design, stable display effect, easy maintenance
bring you more convenience.
With self heat dissipation, high refresh rate,high grey scale,and
easy to install, it is best choice for your all applications.

We have CE ROHS FCC.
Specification:
ModelJade-1Jade-2Jade-3/JadeO-3Jade-4 / JadeO-4Jade-6 / JadeO-6
PitchP1.875mmP2.5mmP3.91mmP4.81mmP6.25mm
LEDSMD1515SMD21212020SMD2121SMD2727SMD
Brightness1000 Nits1000 Nits1000 Nits/5000Nits1000 Nits/5000Nits1000 Nits/5000Nits
Density284444 Pixels/sqm160000 Pixels/sqm65536 Pixels/sqm43222 Pixels/sqm25600 Pixels/sqm
Refresh Rate1,920Hz1,920Hz1,920Hz1,920Hz1,920Hz
Scan Mode1/32 Scan1/32 Scan1/16 Scan1/16 Scan1/4 Scan
Size400mm*300mm500mm*500mm500mm*500mm
500mm*1000mm500mm*500mm
500mm*1000mm500mm*500mm
500mm*1000mm
Module Resolution104 x 78200 x 200128 x 128 Or 128X 256104x 104 Or 104x 20880x80 Or 80x160
Weight5.3kg/per panel6.5kg/per panel6.5kg/per panel6.5kg/per panel6.5kg/per panel
Viewing Angle120.120.120.120.120.
IP DegreeIP 43IP 43IP 43/ IP65IP 43/ IP65IP 43/ IP 65
Working VoltageDC 5VDC 5VDC 5VDC 5VDC 5V
Input VoltageAC 96-260VAC 96-260VAC 96-260VAC 96-260VAC 96-260V
Power Consumption
(Max./Avg.)280 W /sqm
/ 100 W/sqm500 W /sqm
/ 170 W/sqm800W /sqm
/ 267 W/sqm800W /sqm
/ 267 W/sqm800 W /sqm
/ 265 W/sqm
Working Temperature-40~50℃

Good after sold service

Waterproof P3 Outdoor LED Display Screen Fixed 1920hz SMD 2020 For Mall

Our Service

1, Free technical training if needed. ---Client can visit factory, and IKE technician will teach you how to use LED display and repair LED display.
2, Professional after sale service.
---Our technician will help you to configure LED screen by remote if you don’t know how to make LED screen work.
--- We send you enough spare part LED modules, power supply, controller card and cables. And we repair LED modules for you all life.
3, Local installation is supported. ---Our technician can go to your place to install LED screen if needed.
4, Free LOGO print. ---IKE can print LOGO free even if buy 1 piece.

Product Tags:


*From:	Your email address is incorrect!
*To:	IKE Visual Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more LCD Screen Series products from this supplier

Find Similar Products By Category:

Electronic Components & Supplies

Hot Searches:

IKE Visual Co., Ltd.

Waterproof P3 Outdoor LED Display Screen Fixed 1920hz SMD 2020 For Mall

Waterproof P3 Outdoor LED Display Screen Fixed 1920hz SMD 2020 For Mall

Waterproof P3 Outdoor LED Display Screen Fixed 1920hz SMD 2020 For Mall

SMD 2020 Outdoor LED Display Screen

1920hz Outdoor LED Display Screen

Fixed P3 Outdoor LED Display

Waterproof P3 Outdoor LED Display Screen Fixed 1920hz SMD 2020 For Mall

IKE Visual Co.Ltd.,situated in Shishan Science and Technology Park, Foshan, is a high-tech enterprise featuring the R&D and manufacture of LED displays.

We have our own factory covering an area of 10 thousand ㎡,while boasting an experienced research team adept at self-developing such LED products as customized LED screens, flexible LED video walls and transparent LED displays.

Model	Jade-1	Jade-2	Jade-3/JadeO-3	Jade-4 / JadeO-4	Jade-6 / JadeO-6
Pitch	P1.875mm	P2.5mm	P3.91mm	P4.81mm	P6.25mm
LED	SMD1515	SMD2121	2020SMD	2121SMD	2727SMD
Brightness	1000 Nits	1000 Nits	1000 Nits/5000Nits	1000 Nits/5000Nits	1000 Nits/5000Nits
Density	284444 Pixels/sqm	160000 Pixels/sqm	65536 Pixels/sqm	43222 Pixels/sqm	25600 Pixels/sqm
Refresh Rate	1,920Hz	1,920Hz	1,920Hz	1,920Hz	1,920Hz
Scan Mode	1/32 Scan	1/32 Scan	1/16 Scan	1/16 Scan	1/4 Scan
Size	400mm*300mm	500mm*500mm	500mm500mm 500mm1000mm	500mm500mm 500mm1000mm	500mm500mm 500mm1000mm
Module Resolution	104 x 78	200 x 200	128 x 128 Or 128X 256	104x 104 Or 104x 208	80x80 Or 80x160
Weight	5.3kg/per panel	6.5kg/per panel	6.5kg/per panel	6.5kg/per panel	6.5kg/per panel
Viewing Angle	120^.	120^.	120^.	120^.	120^.
IP Degree	IP 43	IP 43	IP 43/ IP65	IP 43/ IP65	IP 43/ IP 65
Working Voltage	DC 5V	DC 5V	DC 5V	DC 5V	DC 5V
Input Voltage	AC 96-260V	AC 96-260V	AC 96-260V	AC 96-260V	AC 96-260V
Power Consumption (Max./Avg.)	280 W /sqm / 100 W/sqm	500 W /sqm / 170 W/sqm	800W /sqm / 267 W/sqm	800W /sqm / 267 W/sqm	800 W /sqm / 265 W/sqm
Working Temperature	-40~50℃
